• Friction type safety clutch
• Disengages at predetermined torque
• Automatically re-engages
• Small size and low cost
• Easy to adjust 		Friction Type
Torque Limiter 		Protek-Sure

Prevent machine Breakdowns
The Protek-Sure friction type torque limiting overload protector provides a reliable low cost method of preventing machine breakage and burned out motors. When the driven load exceeds the friction pressure of the non-asbestos clutch facings spring loaded against the pulley, sprocket or gear used in the clutch, the clutch will slip and will not re-engage until the overload is removed. All parts are of standard and proven design. A bronze oil impregnated bearing should be used on the I.D. of the pulley, sprocket or gear for increased life when overloads are frequent. Contact the factory for specials.

Maximum torque
1 FC - 25 ft. pds.
Model 2 FC - 75 ft. pds.

Std. bore sizes
Model 1 FC: 3/8, 1/2, 5/8, 3/4"
(Keyway 5/8 bore only)

Model 2 FC: 1/2, 5/8, 3/4, 1"
(No Keyway 1/2 bore)

Sample order: 1 FC 1/2
1 FC- model
1/2 - bore

When ordering bronze oil impregnated bearing for above, specify length. 		Compact torque limiting by means of a friction slip clutch
Model 1FC

Interclutch facing width adjustable to accept a variety of drive components

Max dimensions by model number:
 1 FC 2 FC
A22
B22-5/8
C1/21/2
D3/43/4
E1-1/81-1/2

To Adjust Torque
Clamp the pulley, sprocket or gear used in the clutch in a vise. Turn the clutch shaft with a torque wrench. Tighten adjustment nut until the torque wrench reads the proper setting. Lock the set screw in the adjustment nut to hold it in place. 		Protek-Sure friction type torque limiters accomodate the full range of driveline components

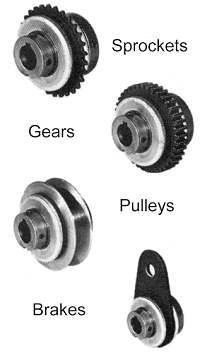

Pulleys, sprockets & gears:

Pulleys, sprockets and gears for all models of Protek-Sure are available from factory stock. When ordering, indicate model they are to be used with for proper bore. Write for prices.

Specials

Many O.E.M. requirements differ from standard dimensions. The factory is equipped to make either minor or major changes in clutches in limited or large quantities.
